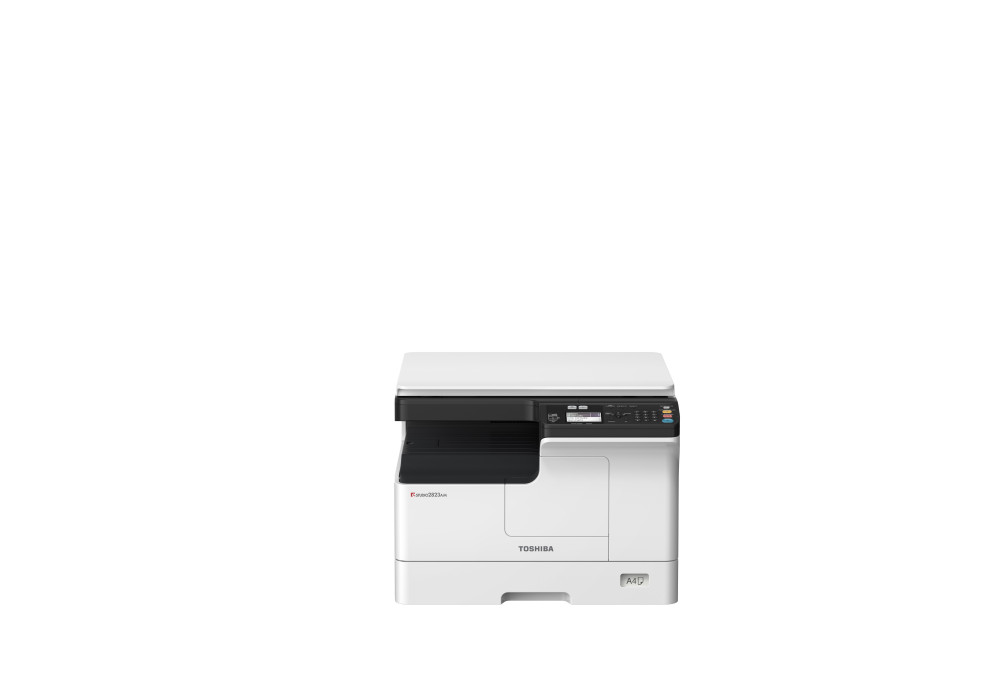

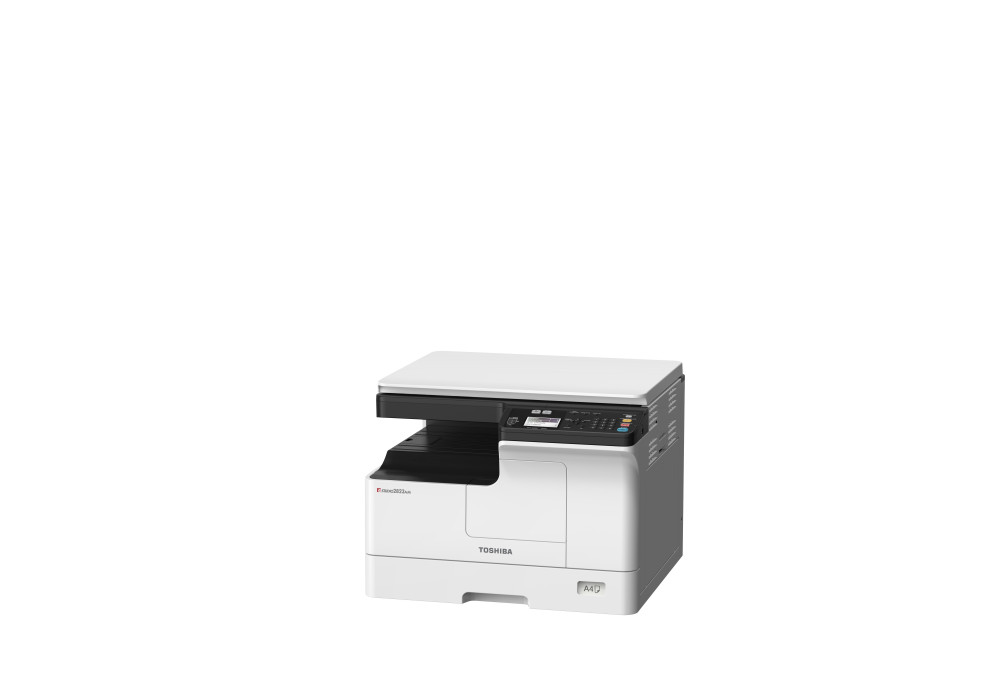

e-STUDIO2823AM

A printing system you can rely on.

Excellent image quality – over and over again. This is what you can expect every time you use this sophisticated A3 system.
  • It covers the basic needs of modern businesses, offering a speed of up to 28 pages per minute..
  • Based on sophisticated technology the e-STUDIO2823AM easily integrates into networks and is intuitive to use.
  • Designed to meet the highest environmental standards, this model helps save valuable resources.

Specifications: e-STUDIO2823AM

GENERAL

Print & Copy Speed:
A4: 28 ppm
A3: 14 ppm
Warm-Up Time:
~ 18 seconds
Paper Size & Weight:
Cassette: A5R-A3, 64-80 g/m²
Bypass: A5R-A3, 52-216 g/m²
Paper Capacity:
Cassette: 1x 250 sheets, Bypass: 1x 100 sheets
Max. 600 sheets
Inner Output Tray:
100-sheet capacity
Automatic Duplex* :
A5R-A3, 64-80 g/m²
Memory:
512 MB RAM
Interface:
10Base-T/100Base-TX (incl. IPv6), High Speed USB 2.0
Dimensions & Weight:
575 x 540 x 402 mm (W x D xH), ~ 27 kg
Starter Kit:
Toner, Drum, Developer

PRINT

Resolution:
Max. 2,400 x 600 dpi with smoothing
Page Description Language:
Graphic Device Interface
Supported Systems:
Windows 10/8.1/7/Server 2008 SP2 (32/64 bit), Windows Server 2016/Server 2012/Server 2008 R2 SP1 (64 bit)
Print Functions:
Print from USB, Multiple pages per sheet, Toner save mode

SCAN

Resolution:
Maximum 600 x 600 dpi
Scan Speed:
Monochrome/Colour: 25/18 ipm (300 dpi)
Scan Modes:
Colour, Greyscale, Monochrome
File Formats:
JPEG, Multi/Single Page TIFF/PDF (via e-STUDIO Scan Editor)
Scan Functions:
Scan templates, Scan to USB, TWAIN, Scan to Mobile

COPY

Resolution:
Scan: 600 x 600 dpi
Print: 2,400 x 600 dpi with smoothing
First Print Output Time:
~ 6.4 seconds
Zoom:
Platen: 25-400%, RADF*: 25-400%
Copy Modes:
Text, Text/Photo, Photo, Background erase
Copy Functions:
Copy templates, ID Card Copy, Edge Erase, 2-in-1/4-in-1 mode, Auto sort**, Electronic sort

SYSTEM & SECURITY

Device Management:
TopAccess for remote administration and configuration
System Features:
Internal toner recycling, Energy-saving modes
Accounting & Security:
100 department codes, IP and MAC address filter
*:
Productivity and paper specifications are related to a paper size of A4 and a paper weight of 80 g/m² if not otherwise mentioned.
**:
Requires RADF

Accessories

Hardware

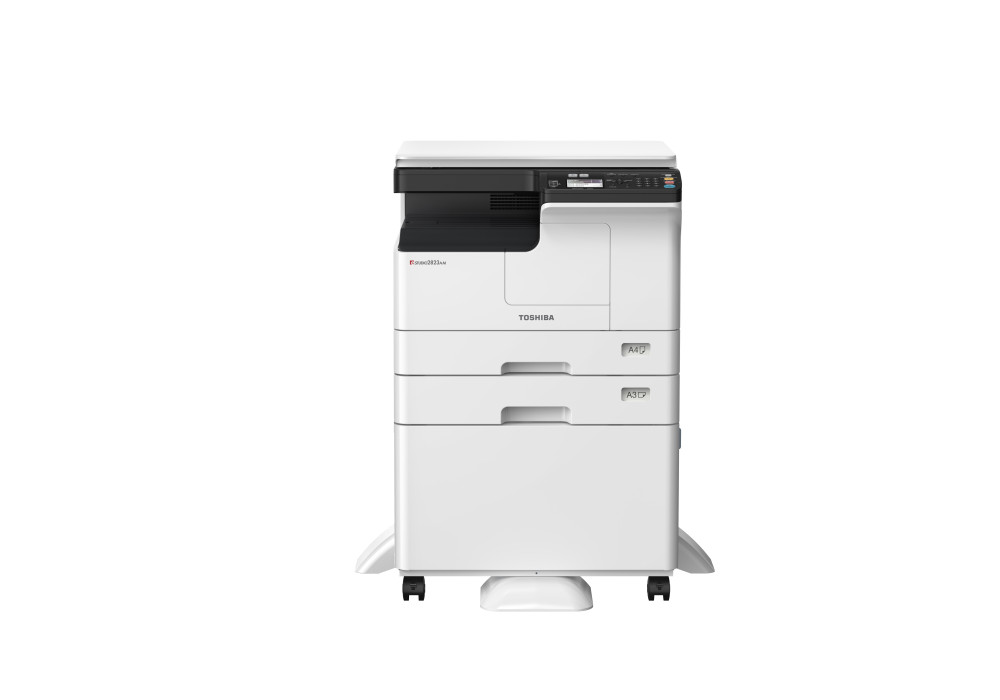

  • MH-2507 - Desk
  • MD-0107 - Automatic Duplex Unit
  • GQ-1131 - Harness Kit for Coin Controller
  • MR-3032 - Reversing Automatic Document Feeder
  • MY-1043-B - Paper Feed Unit

Software

Drivers & Updates

more ...
