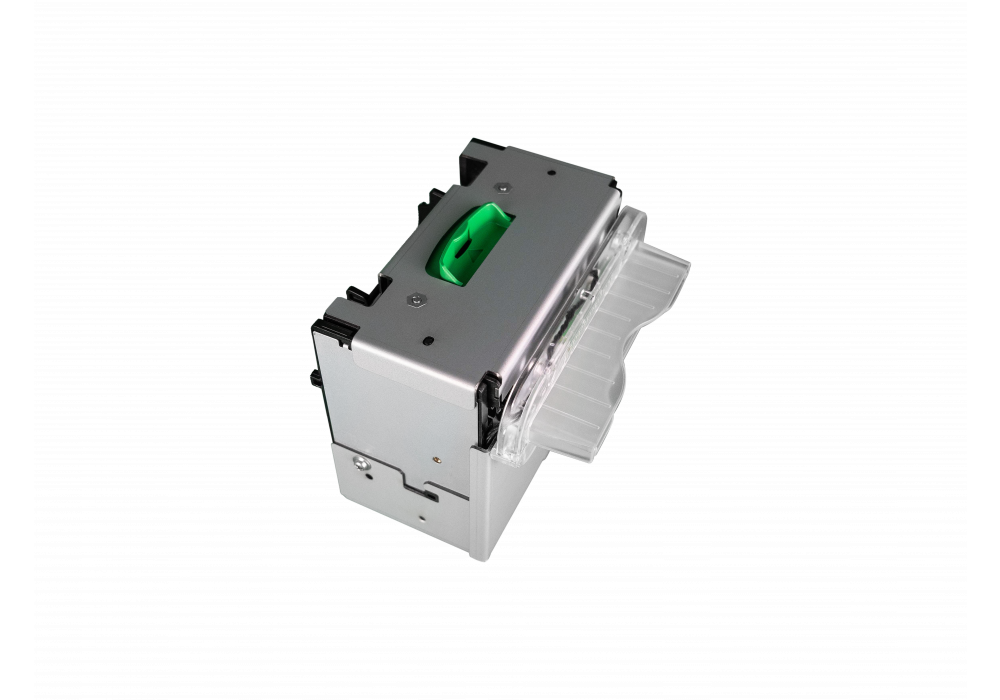

KOP-3S02-B3

Toshiba’s integrated kiosk printer series consists of a range of compact models. The integrated and efficient design of the devices ensures super-fast performance, high print quality and exceptional reliability.

Toshiba’s compact, powerful and super fast receipt printers integrate into kiosk applications. Suitable for on-demand printing of payment, transport, registration and admission receipts. The perfect fit for applications such as digital kiosks, interactive terminals, vending machines. Choose Toshiba kiosk printers for reliability, the highest quality and peace of mind.
  • Top print speed up to 12 ips
  • Detects paper pulled or blocked by the user
  • Ultra reliability for peace of mind
  • Supports 58 and 80 mm wide paper
  • Low total cost of ownership

Specifications: KOP-3S02-B3

GENERAL

Print Method:
Direct thermal
Printhead:
Flat head
User Interface:
LED status bezel, 3 colour indications
Dimensions (W x D x H):
125.2 x 107.2 x 108.4 mm
Weight:
0.9 kg
Operating Temperature/Humidity:
5°-50°C / 25-90% non-condensing relative humidity (RH)
Power Supply :
external, DC 24 V, 75 W (max.)
Connector:
3-pin Molex

PRINT

Sensor:
Jam sensor with pull or block detection
Resolution:
203 dpi
Max. Print Speed:
12 ips (305 mm/s)
Max. Print Width:
54, 72 mm
Cutting mode:
Full or partial
Barcodes:
UPC-A, UPC-E, JAN8 (EAN8), JAN13 (EAN13), Code 39, Code 93, Code 128, Interleaved 2 of 5 (ITF), Codabar (NW-7), PDF417, QR Code
Fonts:
Font A: Font Size 1: 12 x 24, Font Size 2: 13 x 28; Font B: Font Size 1: 9 x 24, Font Size 2: 10 x 28 Double Bytes Font: Font Size 1: 24 x 24, Font Size 2: 26 x 28

MEDIA

Alignment:
Centred
Backing Paper Width :
58, 80 mm
Media thickness:
0.05-0.065 mm
Inner Media Core Diameter:
12 mm
Outer Media Core Diameter:
152.4 mm (6 inch)
Media type:
Roll

SOFTWARE & CONNECTIVITY

Emulation:
ESC, POS, OPOS, Java POS
Printer Drivers:
Windows 10/8/7/XP
Interface:
USB

OPTIONS

3" top drop-in loading paper holder, 6" side loading (left or right) paper holder with arm
