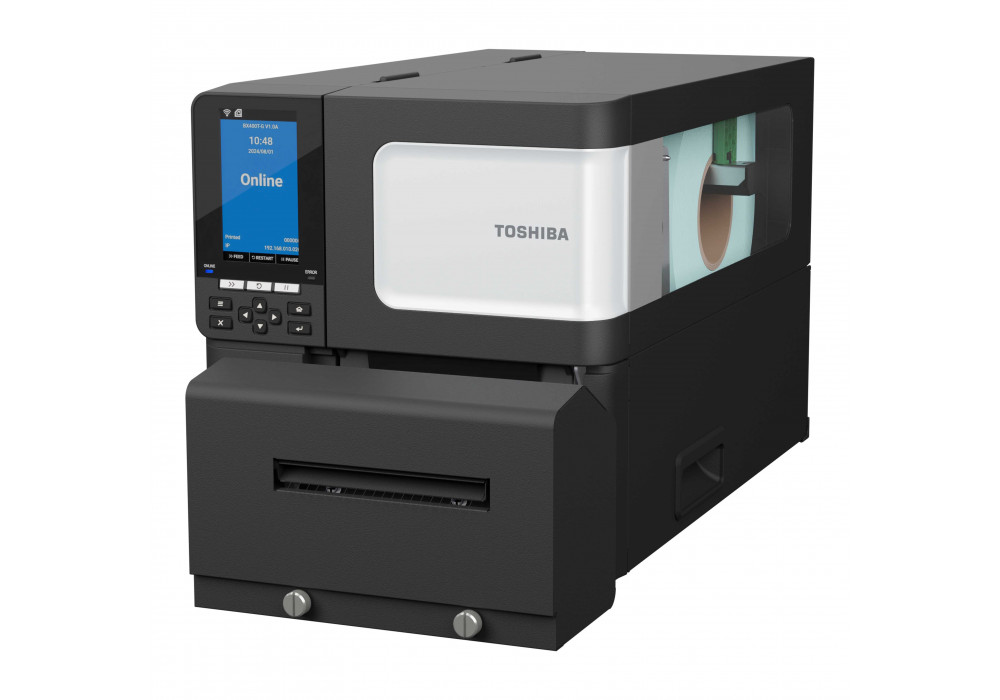

BX410T

The next-gen industrial printer BX410T combines field-proven hardware with a dual-core CPU running both, a real-time OS and a Linux OS creating the revolutionary A-BRID eco-system.

Built on the same renowned hardware as its outstanding predecessor, the BX410T series boasts a powerful dual-core CPU that drives Toshiba’s revolutionary A-BRID operating system. It provides smart, cloud-based intelligence that keeps your operation seamless, even in the most demanding applications. The BX410T industrial printer series – where superior hardware meets innovative technology.
  • Dual-core CPU architecture driving the A-BRID operating system.
  • Real-time PDF printing with auto rotation & scaling
  • Auto-emulation detects printer language automatically
  • Cloud ready: e-BRIDGE CloudConnect & SOTI Connect
  • Embedded apps for, e.g. standalone printing
  • Automatic ribbon and label near end detection
  • Renowned hardware reliability with long-life print heads



Specifications: BX410T

GENERAL

Print Method:
Thermal transfer, direct thermal
Printhead:
Near edge
User Interface:
Full colour LCD, 2x LED, 11x key
Dimensions (W x D x H):
278 x 460 x 310 mm
Weight:
17 kg
Operating Temperature/Humidity:
5°-40°C (41°-104°F) / 25-85% non-condensing relative humidity (RH)
Storage Temperature/Humidity:
-40°-60°C (-40°-140°F) / 10-90% non-condensing relative humidity (RH)
Power Supply :
AC 100-240 V, 50/60 Hz

PRINT

Sensor:
Reflective, transmissive
Resolution:
GS02: 203 dpi (8 dots/mm), TS02: 305 dpi (11.8 dots/mm)
Max. Print Speed:
14 ips (356 mm/s)
Max. Print Width:
104 mm
Print length:
Batch: 6-1,496 mm, Cut: 21.4-1,492 mm, Peel-off: 21.4-1,496 mm
Barcodes:
EAN8, EAN13, JAN8, JAN13, UPC-A, UPC-E, NW7, CODE 39, Code 93, ITF, MSI, Code 128, EAN 128, Industrial 2 of 5, POSTNET, RM4SCC, KIX-code, GS1 DataBar, USPS Intelligent mail, Customer Barcode
2D Codes:
Data Matrix, PDF417, MaxiCode, QR Code, Micro QR Code, Micro PDF417, CP Code, AZTEC Code, GS1 QR Code, GS1 Data Matrix
Fonts:
Bitmap font, Outline font, Price font, Optional TTF, OTF, Writable characters

RIBBON

Ribbon width:
max. 112 mm
Ribbon Core Size:
25.7 mm (±0.2 mm)
Max Ribbon Length:
600 m, 800 m
Max ribbon roll diameter:
90 mm
Near End Detection:
30 or 70 m selectable

RFID

RFID Module:
Optional UHF (EPC Gen2), Optional HF (ISO15693, ISO14443 Type A)
RFID Analyser:
Integrated RFID analyser

MEDIA

Alignment:
Centred
Backing Paper Width :
30-107 mm
Label Thickness:
Label: 0.13-0.17 mm, Tag: 0.08-0.25 mm
Inner Media Core Diameter:
76.2 mm
Outer Media Roll Diameter :
max 200 m
Media Format:
Roll, fanfold
Media type:
Vellum paper and labels, Matt coated paper, Glossy coated paper, Synthetic film, PET film, Polyimide
Near End Detection:
Adjustable, e.g. 10% remaining

A-BRID OPERATING SYSTEM

CPU:
Dual core, 1.0 Ghz
A-BRID Dual OS:
System: Linux-based, Print engine: RTOS
Memory:
1GB RAM, 8 GB ROM
Expansion Memory:
via USB drive
Embedded Applications:
SDK for custom applications, e.g. for standalone printing
Print Data Converter:
Automatically convert or correct incoming data
PDF Direct Printing:
Auto print of PDFs, auto rotate, auto scaling

SOFTWARE & CONNECTIVITY

Emulation:
Auto-detection of TPCL, ZPL II, DPL, SBPL, PDF
Printer Drivers:
Windows 11/10, Windows Server 2022/2019, SAP, CUPS driver for Linux, macOS
SDK:
iOS, Android, Windows, Java
Interface:
USB 2.0,USB 2.0 HS (USB host/HID support), LAN 10/100/1000 BaseT, RS232*, WLAN 802.11ac/a/b/g/n/ax*, Expansion I/O*
Language mode :
TPCL
Label Software :
NiceLabel Free, BarTender UltraLite
IoT Device Management:
SOTI Connect, e-BRIDGE CloudConnect

OPTIONS

Disc cutter, Rotary cutter, Peel-off module, Ribbon save module, External media guide, RS232, Wireless LAN, EX I/O, UHF RFID kit, HF RFID kit, Real time clock
