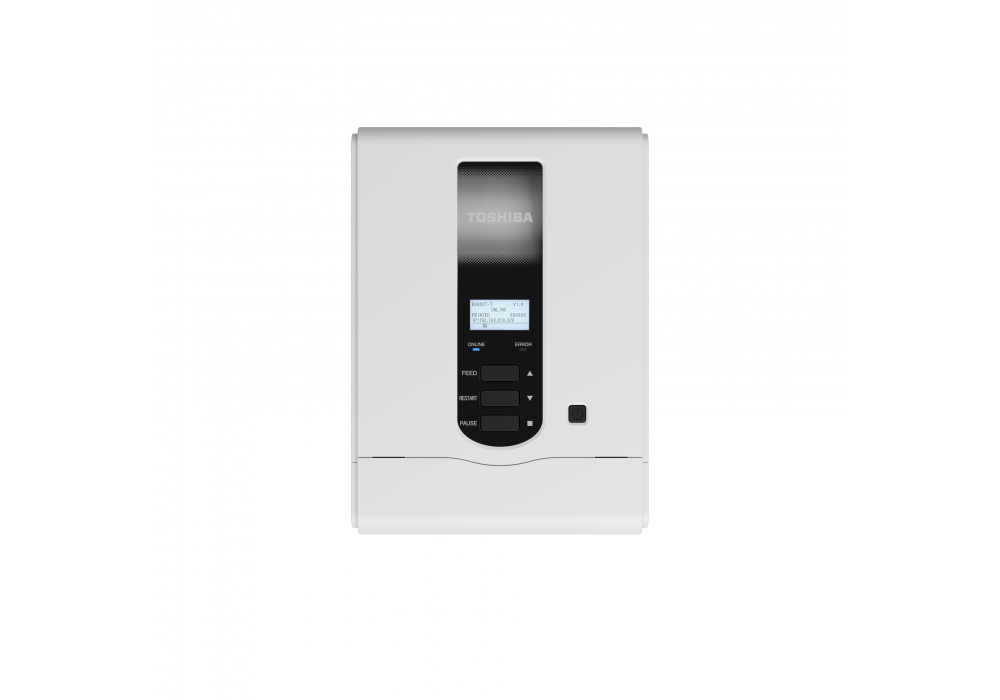

BV410T

The latest print technology incorporated into a sleek case design for ultimate user experience.

Coming with a new powerful and scalable system architecture the BV410T models are future-proove.  The integrated LCD screen provides clear information and notifications that are emphasised by the colour change of the status LEDs. The BV410T thermal transfer printers enable optional RFID encoding and support a wide range of ribbons from wax to resin.
  • Market leading throughput with up to 7 ips
  • Compact & sleek design with a small footprint
  • Intuitive & clear user experience
  • Vast print languages & emulations
  • Optional RFID encoding opens a wide-range of new applications
  • SOTI Connect certified for IoT device management



See here the full potential of the BV400T series here:

Specifications: BV410T

GENERAL

Print Method:
Thermal transfer, direct thermal
Printhead:
Flat head
User Interface:
2x LED, 3x key, with LCD
Dimensions (W x D x H):
200 x 267 x 198.3 mm
Weight:
2.9 kg
Memory:
128 MB (FROM), 128 MB (SRAM)
Operating Temperature/Humidity:
5°-40°C (41°-104°F) / 25-85% non-condensing relative humidity (RH)
Storage Temperature/Humidity:
-40°-60°C (-40°-140°F) / 10-90% non-condensing relative humidity (RH)
Power Supply :
AC 100-240 V, 50/60 Hz

PRINT

Sensor:
Reflective, transmissive
Resolution:
GS02: 203 dpi, TS02 300 dpi
Max. Print Speed:
GS02: 7 ips (177.8 mm/s), TS02: 5 ips (127 mm/s)
Max. Print Width:
GS02: 108 mm, TS02: 105.7 mm
Print length:
Batch: 6-997.9 mm, Cut: 20.4-997.9 mm*, Peel-off: 21.4-148.4 mm*
Barcodes:
UPC/EAN/JAN, Code 39, Code 93, Code 128, EAN 128, NW7, MSI, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, POSTNET, RM4SCC, KIX Code, Customer Barcode, GS1 DataBar, USPS Intelligent Mail Barcode
2D Codes:
Data Matrix, PDF 417, MaxiCode, QR Code, Micro PDF 417, Micro QR, GS1 Data Matrix, GS1 QR Code, Aztec Code
Fonts:
Bitmap font, outline font, price font, optional TTF, writable characters

RIBBON

Ribbon width:
40 - 110 mm
Ribbon Core Size:
25.4 mm (1"), 12.7 mm (0.5")
Max Ribbon Length:
300 m
Max ribbon roll diameter:
65 mm

MEDIA

Alignment:
Centred
Backing Paper Width :
25.4-118 mm
Label Thickness:
0.06-0.19 mm
Inner Media Core Diameter:
Standard: 25.4, 38.1, 42 mm, Optional: 76.2 mm
Outer Media Roll Diameter :
Standard: Max. 127.0 mm, Optional: Max. 214 mm
Media Format:
Roll, fanfold

SOFTWARE & CONNECTIVITY

Emulation:
ZPL II, DPL, SBPL, EPL2, IPL
Printer Drivers:
Windows 11/10, Windows Server 2019/2016/2012 R2/2012, SAP, Linux, macOS
SDK:
iOS, Android, .NET
Interface:
USB 2.0, USB Host, Ethernet 10/100 Base T (IPv4 & IPv6), WLAN 802,11a/b/g/n (dual band for 2.4 GHz/5 GHz)*/**, Bluetooth V5.2 BR/EDR with MFi certified*/**, serial port*
Language mode :
TPCL, Basic Command Interpreter (BCI)
Label Software :
BarTender UltraLite, NiceLabel Free
IoT Device Management:
SOTI Connect

OPTIONS

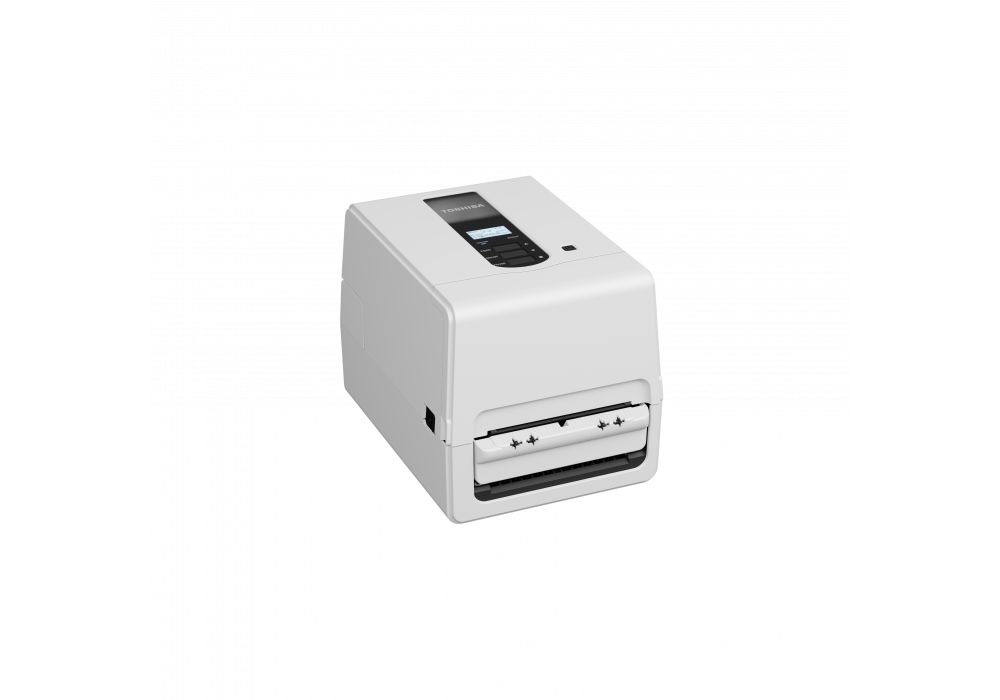

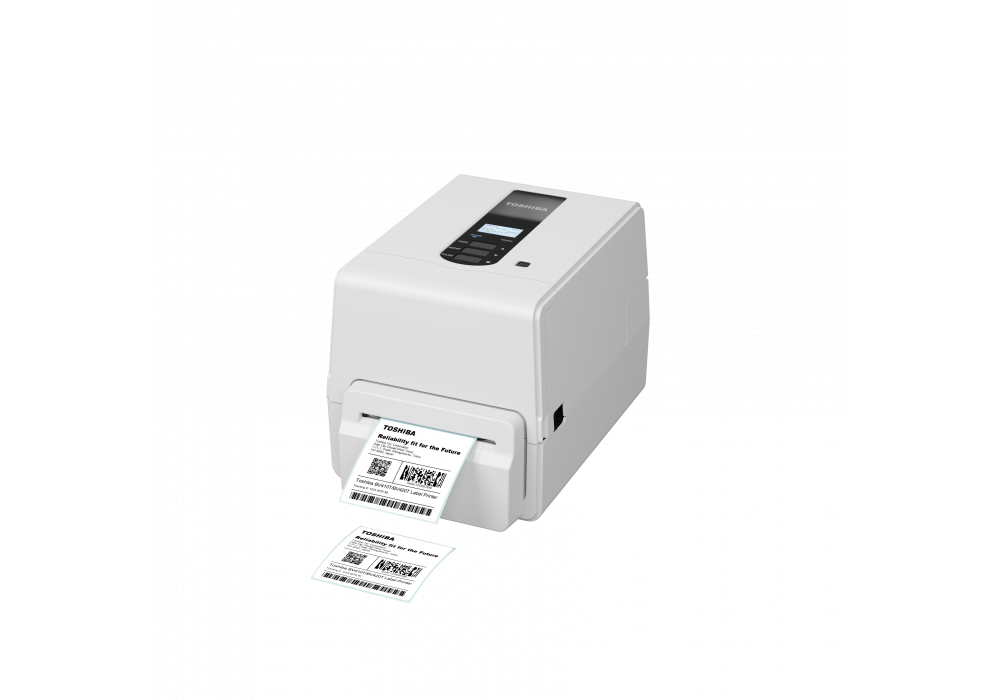

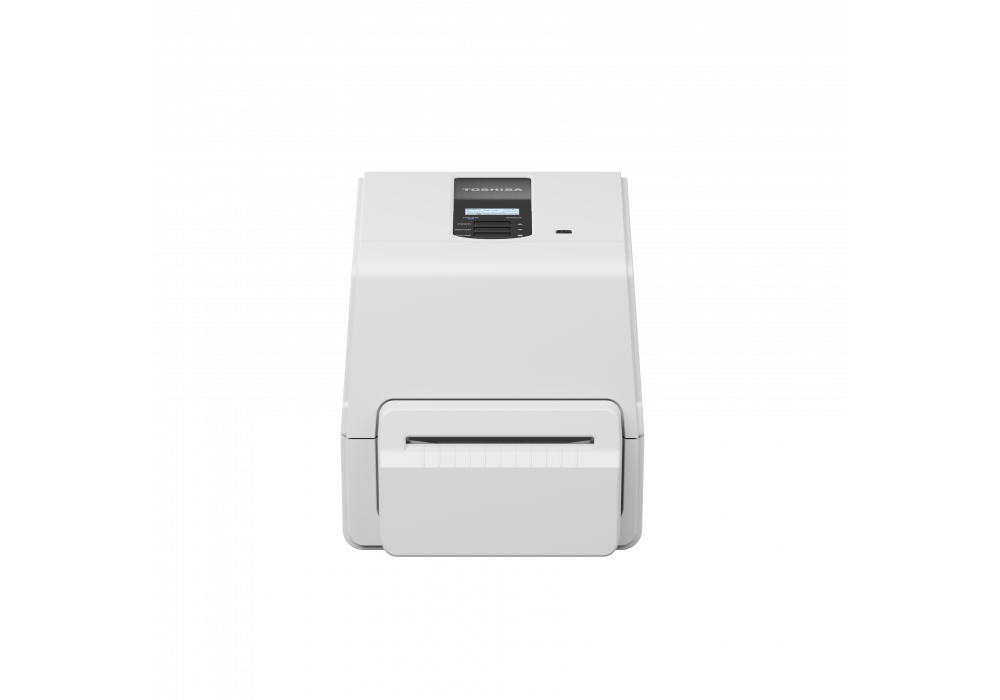

UHF RFID kit, full cutter module, partial cutter module, peel-off module, serial interface board, wireless LAN module, Bluetooth module, AC adapter cover, external media stand, print head kits for resolution change
**:
Availability varies from country to country

Accessories

  • BV904-PH-QM-S - External 8” OD Media Stand for BV400D series
  • BV700-RS-QM-S - RS-232C serial interface for BV400D series
  • BV214-F-QM-S - Full cutter for BV410D
  • BV214-P-QM-S - Partial cutter for BV410D
  • BV700-WLAN-QM-S - Wi-FI interface (802.11 a/b/g/n) for BV400D series
