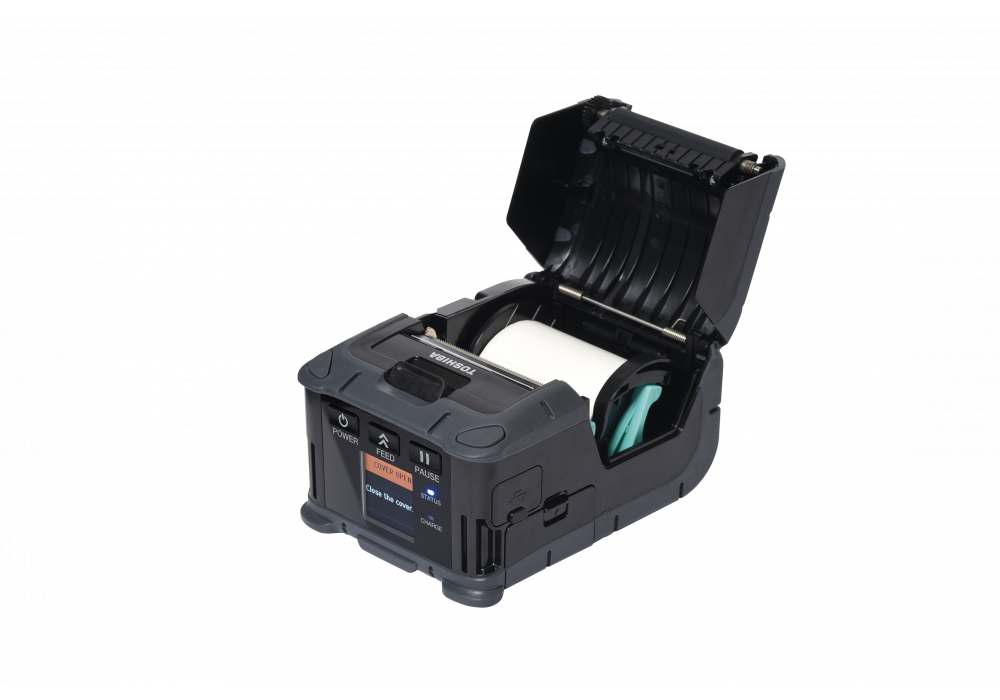

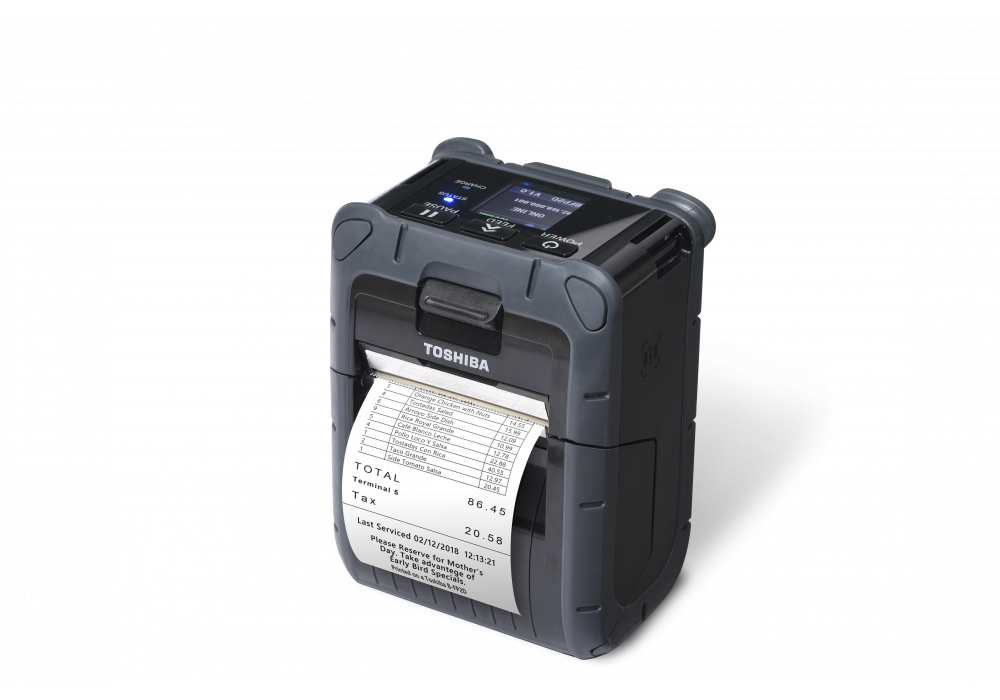

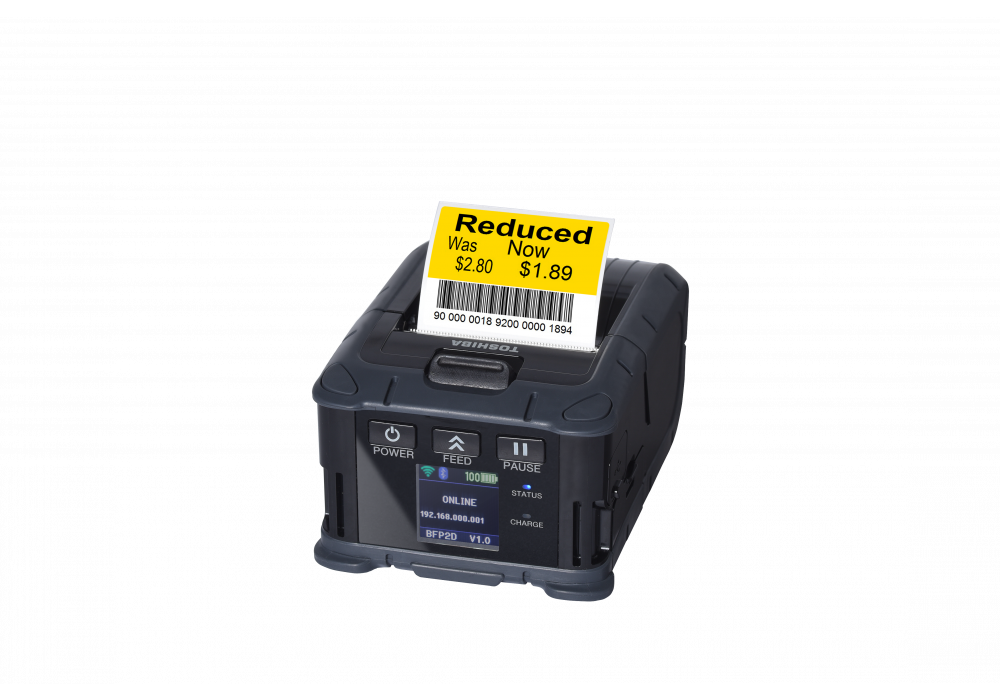

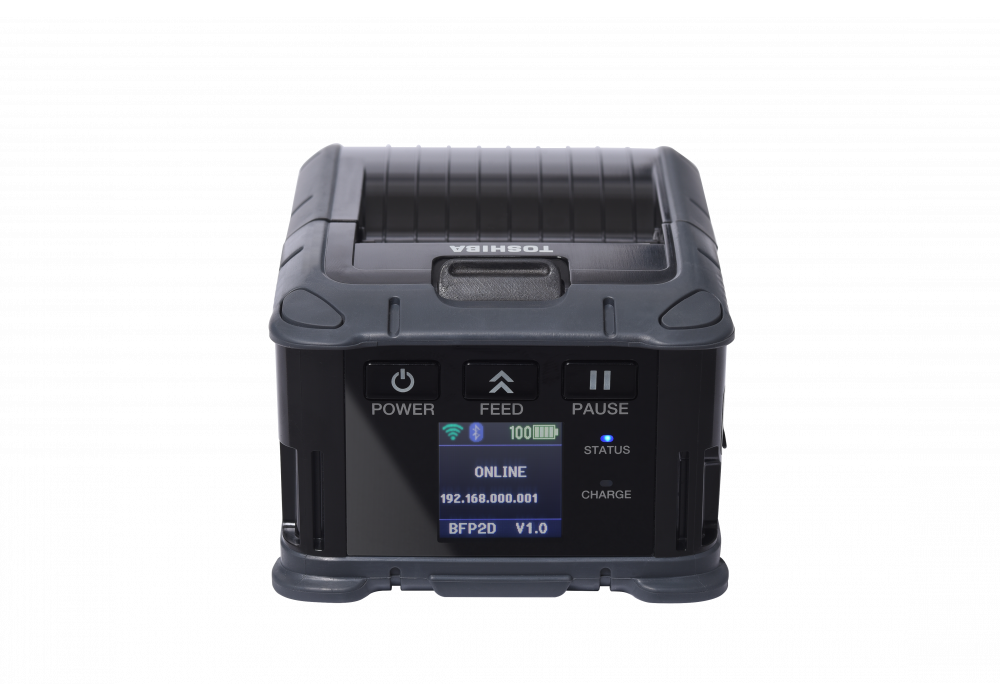

B-FP2D

Designed for the ultimate user experience, with easy operation and the flexibility to operate in the most diverse working environments.

The new powerful system architecture enhances the B-FP2D's performance whilst future-proofing investments. With this OS architecture this mobile printer will keep pace even with the latest technology standards and requirements.
  • Colour display including maintenance alerts to maintain outstanding performance
  • Rugged and durable design to endure the harshest working environments
  • Market leading print speeds of up to 6 ips
  • Intelligent battery life monitoring to detect battery deterioration before it happens
  • Tested to meet IP54 requirements for dust and water ingress
  • Next level of mobility thanks to 2.4/5 GHz Wi-Fi support, NFC for Bluetooth pairing, MFi support for iOS devices, etc.
  • SOTI Connect certified for IoT device management

Specifications: B-FP2D

GENERAL

Printing Technology:
Direct thermal
Thermal Print Head Type:
Flat
Dimensions (W x D x H):
97 x 130 x 69 mm
Weight:
~460 g (with battery)
Memory:
8 MB (FROM), 16 MB (SRAM)
Drop Strength :
2.0 m (multiple drops to concrete)
IP54 Compliant:
yes, excluding the paper path
User Interface:
Full colour LCD screen (128 x 128 pixel), 2 LED, 3x key
Operator keys:
Power, feed, pause
Charging Temperature/Humidity:
0°C - 40°C, 25-85% non-condensing relative humidity (RH)
Operating Temperature/Humidity:
-15°C - 50°C, 25-85%, non-condensing relative humidity (RH)
Battery:
Lithium ion battery 7.4V, 2,500 mAh

PRINT

Resolution:
203 dpi
Sensor:
Reflective, transmissive
Print Speed:
Up to 6 ips (152.4 mm/sec)
Print width:
Max. 54 mm
Print length:
Max. 995 mm
Barcodes:
UPC/EAN/JAN, Code 39, Code 93, Code 128, EAN 128, NW7, MSI, Interleaved 2 of 5, Industrial 2 of 5, POSTNET, RM4SCC, KIX-Code, GS1 Databar, Plessy
2D Codes:
Data Matrix, PDF417, Maxicode, QR Code, Micro PDF417, Micro QR, GS1 Data Matrix, Aztec
Fonts:
Bitmap font, outline font, Price font, TTF, OTF, writable characters

MEDIA

Alignment:
Centred
Backing Paper Width :
Label: 26 - 58 mm
Inner Media Code Diameter :
12 mm (with/without core)
Outer Media Roll Diameter :
Max. 60 mm
Media type:
Label, receipt, tag
Issue mode:
Batch, peel-off

SOFTWARE & CONNECTIVITY

Emulation:
ZPLII, SBPL, CPCL
Printer Drivers:
Windows 10/8.1/8/7 (32/64 bit), Windows Server 2016, Windows Server 2012 R2/Server 2012, Windows Server 2008 R2, SAP, OPOS, JPOS
SDK:
iOS, Android, Windows CE, Java, .NET
Interface:
USB 2.0 HS, Bluetooth V2.1 EDR with MFi certified, NFC (for Bluetooth pairing), GH50 only: WLAN 802.11 a/b/g/n (dual band for 2.4/5 GHz)
Language mode :
TPCL, LABEL, RECEIPT, ESC/POS, Basic Command Interpreter (BCI)
Label Software :
Bartender UltraLite (co-packed)
IoT Device Management:
SOTI Connect (GH50 model only)

Accessories

  • B-EP800-CHG6-QM-R - 6-Slot Battery Charger
  • B-EP900-SS-QM-R - Shoulder Strap
  • B-EP800-CHG-QM-R - 1 -Slot Battery Charger
  • B-FP902-CC-QM-S - Carry Case for B-FP2D
  • B-FP802-CR4-QM-S - 6-Slot Cradle Charger
  • B-FP800-AC-QM-S - AC Adaptor (220 V) for B-FP2D
  • B-FP802-CR-QM-S - 1-Slot Cradle Charger
  • B-FP902-LL-QM-S - Linerless Label Kit For B-FP2D
  • B-FP803-BTH-QM-R - Spare Battery for B-FP2D
  • B-FP800-DCJA-QM-R - DC Jack adapter to enable standard power supplies to charge the B-FP series
